Flail Mowers

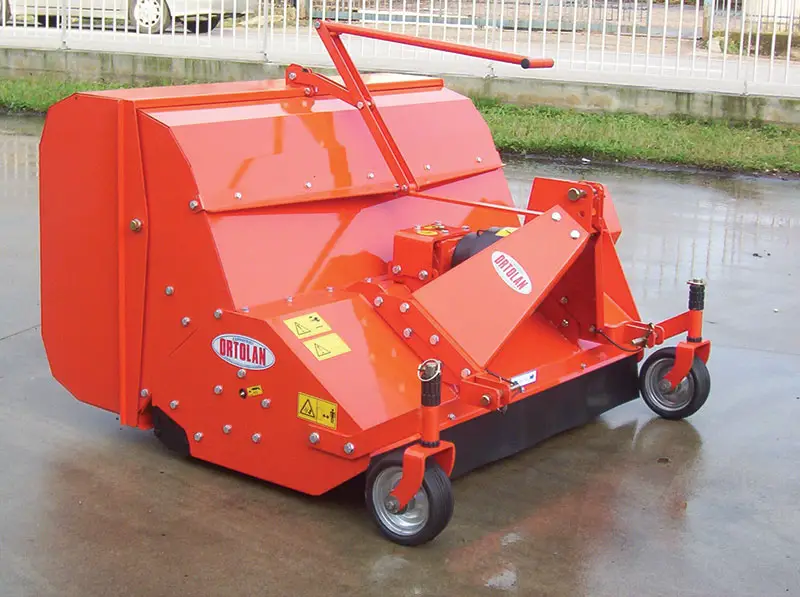

Flail Mower series T10 Pick-up for tractors between 15 and 35 HP (11-26KW
Machine suitable to cut the grass. Used to maintain grassy soil in gardens, parks and golf courses. Ideal to cut the grass and eventual small residual trimmings, which remain after pruning. 4 models are available following the di erent working width 100, 120, 140, 160 cm. 540 rpm gearbox monospeed with free wheel, rear roller, universal 3 point hitch cat. 1st
- Standard knives for a perfect cut of the grass.
- Equipped by a rear collector suitable to pick up all the cutting residuals.
- The pick-up emptying is hydraulic. .
Standard equipment
- CE standard equipment
- 540 rpm gearbox speed transmission with free wheel
- 3 pt. hitch cat. 0 and 1 pins
- Rear roller Ø121
- Set of front wheels for depth control
- Opening system with hydraulic jack 2 Transmission chains
Power
15 - 25 HP
11 - 26 KW
Working width
103 - 163 cm
Weight
310 - 390 kg
T10 Pick-up 100 | T10 Pick-up 120 | T10 Pick-up 140 | T10 Pick-up 160 | |
|---|---|---|---|---|
Potenza HP | 15-35 | 20-35 | 25-35 | 30-35 |
Larghezza lavoro cm | 103 | 123 | 143 | 163 |
Larghezza trasporto cm | 114 | 134 | 154 | 174 |
Peso Kg | 270 | 595 lbs | 300 | 661 lbs | 325 | 716 lbs | 345 | 760 lbs |
Capacità raccoglitore m³ | 0,60 | 0,72 | 0,84 | 0,95 |
Mazze ° | 24 | 32 | 40 | 48 |
Available Versions
Versione apertura idraulica con spatole
Il trinciaerba Serie T10 Pick-Up viene fornito in versione apertura idraulica con spatole. Di seguito riportati i pesi dei modelli: T10 100 PK: 310 kg, T10 120 PK: 340 kg, T10 140 PK: 365 kg, T10 160 PK: 390 kg.
Manufacturing 100% Made in Italy
Highly efficient and robust construction of agricultural machinery. Process performed by highly specialised labour with craftsmanship entirely in Italy.
